Description

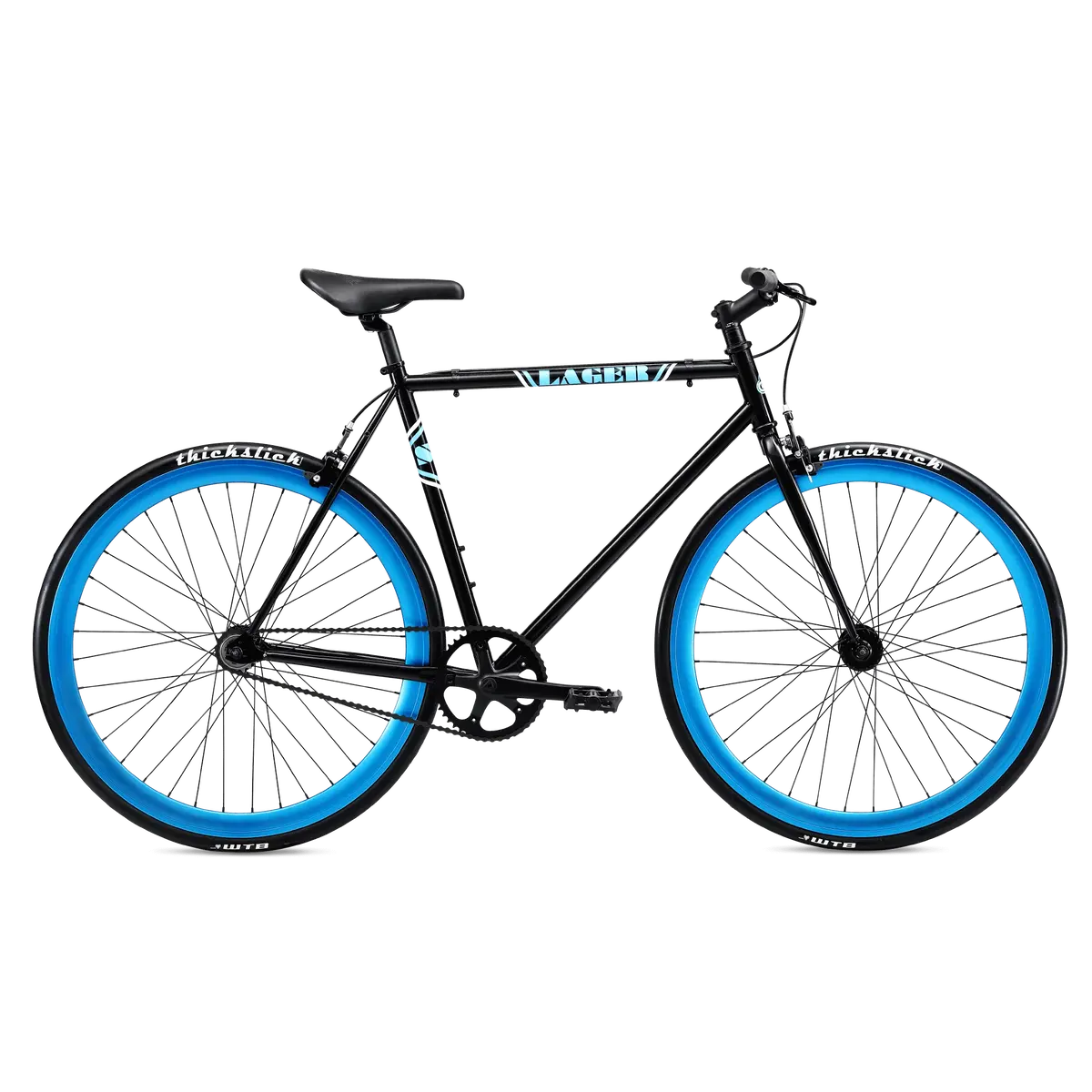

The Lager packs a quality punch with a butted top tube and down tube, Cr-Mo seat tube, alloy cranks, and super smooth Freedom ThickSlick tires. The perfect bike to get you where you want to go and in style.
- Hi-Ten steel urban single-speed style frame with butted top tube and down tube, Cr-Mo seat tube with integrated seat clamp, plus water bottle and fender mounts for increased carrying capacity
- Hi-Ten SE steel straight leg fork with wide tire clearance
- Dual pivot alloy brakes
- Alloy cranks with sealed cartridge Euro bottom bracket
- SE high-flange alloy fixed/free 36H hubs with extra high-profile double-wall rims
| Bike Size | 49cm | 52cm | 55cm | 58cm | |
| Size | XS | S | M | L | |
| A | Seat Tube, Center to Top | 490 | 520 | 550 | 580 |
| B | Top Tube, Effective | 553 | 562 | 573 | 580 |
| C | Head Tube Length | 90 | 95 | 125 | 155 |
| D | Seat Tube Angle | 74° | 74° | 74° | 74° |
| E | Head Tube Angle | 72° | 72° | 72° | 72° |
| F | Chainstay Length | 420 | 420 | 420 | 420 |
| G | Wheelbase | 1006 | 1016 | 1028 | 1036 |
| H | Bottom Bracket Drop | 58 | 58 | 58 | 58 |
| I | Standover | 758 | 775 | 802 | 833 |
| Stem | 65 | 65 | 80 | 90 | |
| Handlebar Width | 580 | 580 | 580 | 580 | |
| Crank | 165 | 165 | 170 | 170 | |
| Wheel Size | 700c | 700c | 700c | 700c | |
| Seat Post Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
