RC4WD 1/10 Scale WARN 9.5CTI Winch System

Description

RC4WD 1/10 Warn 9.5cti-s Winch

One of the most iconic names in off-road. This is an all new RC4WD 1/10 Warn 9.5cti winch. This winch offers ultra scale looks, and superior quality and craftsmanship. Officially Licensed by Warn.

Specifications:

• Cast Zinc Case
• Stamped Steel Components
• Working Spring Loaded Warn Hook
• Synthetic Winch Rope
• Highly Detailed
• Full Warn Decals Installed
• Operating Voltage: 6V – 12.4V
• Can operate on 3 Cell Lipo
• Easily Rebuildable
• 3ft/.9M Rope Pre-Installed
• Same Mounting Locations as Bulldog Winch
• Load Limits: Dead Lift 6.6lbs/3kgs
• Load Limits: Rolling Drag 9lbs/4.1kgs
• 30 Day Warranty
• Length: 2.98in / 75.85mm
• Height: 1.16in / 29.62mm
• Width: 1.39in / 35.35mm
• Weight: 3.39oz / 96.2g

Shown installed on RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043), Front Winch Bumper w/ Stinger for Defender 90 (Z-S2059) and King Kong Tow Shackle (Z-S0093) for example (Not Included)



What’s Included:

• 1x RC4WD 1/10 Warn 9.5cti-s Winch
• 1x RC4WD Warn Winch Pull Tag
• 4x M2.5x4mm SHCS (Black)
• 4x M2.5x6mm SHCS (Black) (Z-S0855)
• 1x Warn Decal Sheet

Required Parts:

• RC4WD Warn 1/10 Advanced Wireless Remote/Receiver Winch Controller Set (Z-E0130)

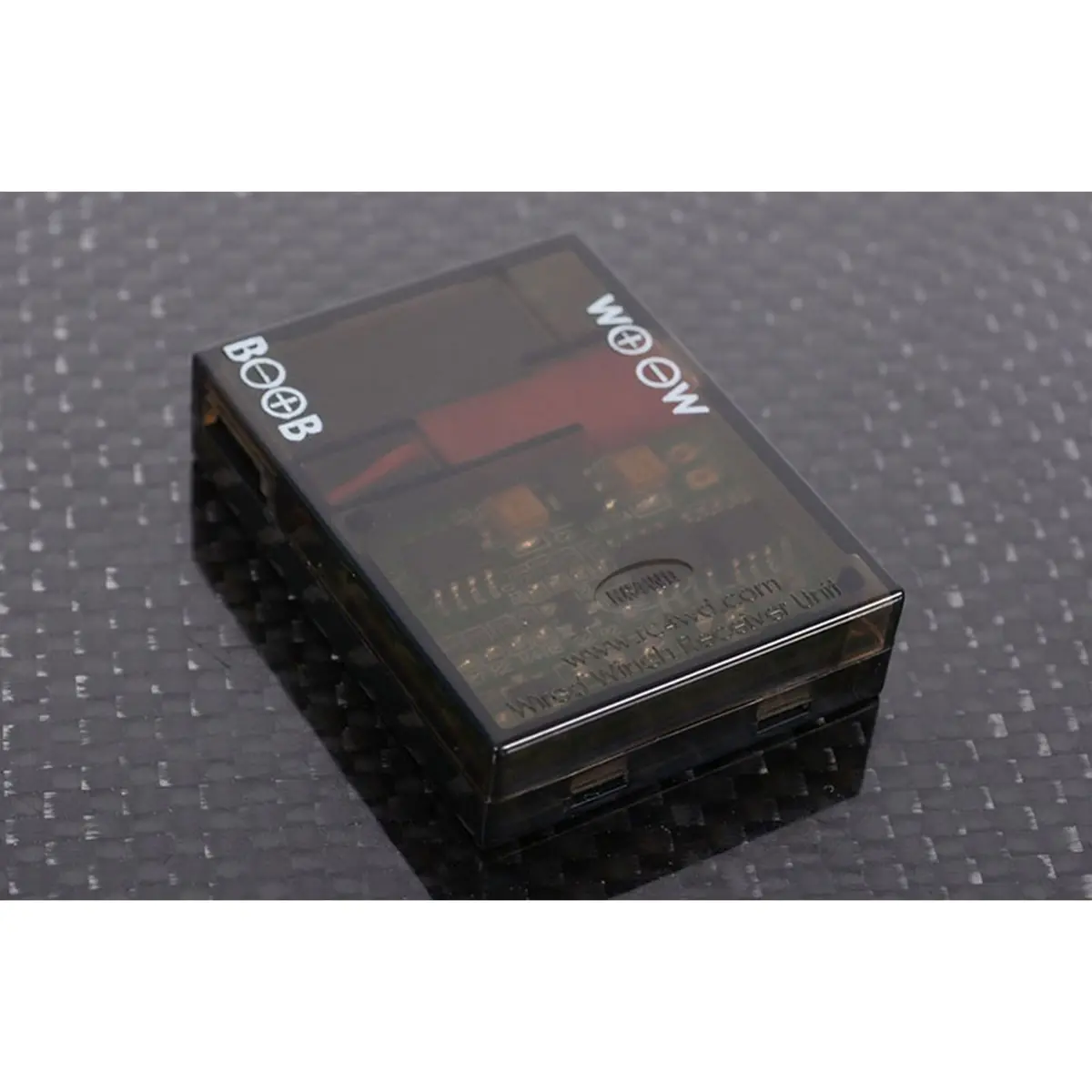

• RC4WD Wired Winch Control Unit (Z-S1089)

Optional Parts:

• RC4WD ARB Winch Snatch Block (Z-S0341)
• RC4WD 1/10 Warn Hawse Polished Aluminum Fairlead (Z-S1310)
• RC4WD Marlin Crawler Front Winch Bumper for Trail Finder 2 (Z-S1496)
• RC4WD 1/10 Viking Roller Fairlead for Warn 9.5cti Winch (Z-S1498)
• RC4WD Warn 1/10 Premium Winch Hook (Z-S1551)
• Metal Front Winch Bumper for Traxxas TRX-4 Land Rover Defender D110 (VVV-C0469)
• RC4WD Warn Epic Sidewinder (Chrome) (Z-S1997)
• RC4WD WARN Epic Hyperlink (Chrome) (Z-S1999)
• RC4WD WARN Epic Hyperlink (Black) (Z-S2000)
• RC4WD Rebel Off Road Aluminum Hawse Fairlead (Z-S0702)

Replacement Parts:

• Replacement Motor/Gearbox 1/10 Warn 9.5cti 1/10 Winch (Z-E0051)
• 1/10 Warn Hook (Z-S1011)
• Synthetic Winch Rope (Z-S0038)
• RC4WD Warn Winch Pull Tags (Z-S1660)

Replacement Hardware:

• 4x M2x5mm FHCS (Silver)
• 2x M2x4mm SHCS (Silver) (Z-S0927)
• 2x M2x6mm SHCS (Silver)

Notes:

• This winch requires a control unit. We offer both a wired (uses your radio’s third channel) and wireless unit (hooks directly to a battery).
• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
• For Warnings, Precautions, Safety and Damage Limits: Click Here
• Same mounting points as our Bulldog winches
• Dead Lift is defined as the winch lifting a product from a higher position with no help from the product being lifted.
• Rolling Drag is defines as a truck using its rolling force to help the winch pull a truck or products weight.
• Fits RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)
